Solderless Terminal DIN46234 M3 Copper tinned 0.1-0.5mm² AWG26-22

Name: Solderless Terminal DIN46234 M3 Copper tinned 0.1-0.5mm² AWG26-22
SKU: 018.60.435
Availability: InStock

Article-No.: 018.60.435

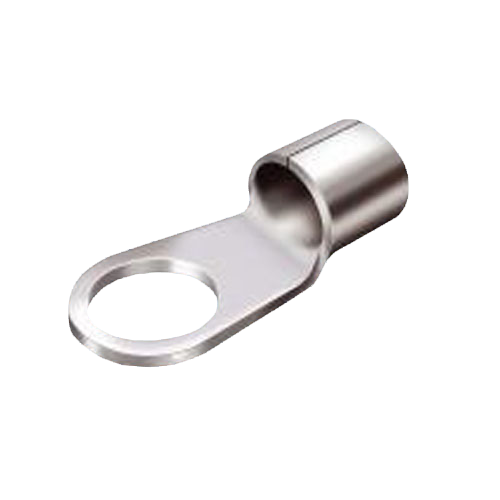

Illustration may be similar

€14.50 / 100 PCS

excl. VAT plus shipping costs Shipping

Minimum purchase 100 PCS Purchase Unit 100 PCS

Available immediately

Available now Yes

Material Group Copper

Material Copper

Finish Tin-Plated

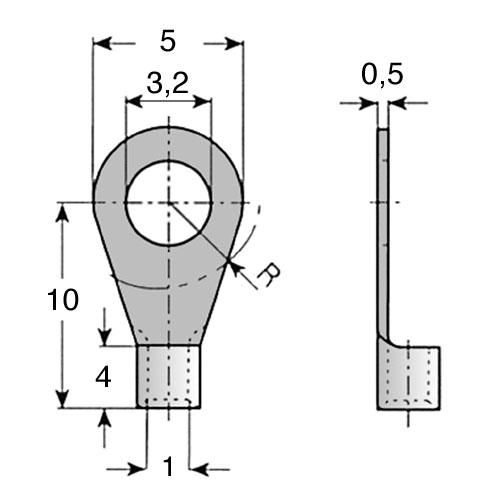

DIN/ISO DIN46234-A

Wire Cross Section [mm²] 0.1-0.5

For Thread Size M3

Outer Diameter [mm] 5

Inside Dia.D1 [mm] 1

Select properties above to find similar products:

Conformities Downloads

€14.50 100 PCS

excl. VAT plus shipping costs Shipping

Conformities

REACh Registration, Evaluation, Authorisation and Restriction of Chemicals 1907/2006
Regulation 2011/65/EU RoHS II + 2015/863/EU RoHS III
SVHC List: Substances of Very High Concern (253)
