Nuts for T-Slots
002.04.081
Available immediately
| Unit price | Quantity |
|---|---|
|
€71.25*
/
25
PCS
|
from 25 |
Available immediately
002.04.141
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€45.50*
/
10
PCS
|
from 10 |
Available in 20 days
002.04.241
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€172.00*
/
10
PCS
|
from 10 |
Available in 20 days
002.04.062
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€70.00*
/
25
PCS
|
from 25 |
Available in 20 days
002.04.041
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€60.00*
/
25
PCS
|
from 25 |
Available in 20 days
002.04.051
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€61.25*
/
25
PCS
|
from 25 |
Available in 20 days
002.04.161
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€55.00*
/
10
PCS
|
from 10 |
Available in 20 days
002.04.201
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€89.50*
/
10
PCS
|
from 10 |
Available in 20 days
002.04.061
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€67.50*
/
25
PCS
|
from 25 |
Available in 20 days
002.04.121
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€33.00*
/
10
PCS
|
from 10 |
Available in 20 days
002.04.101
Available in 20 days
| Unit price | Quantity |
|---|---|
|
€29.50*
/
10
PCS
|
from 10 |
Available in 20 days
What are nuts for T-slots?

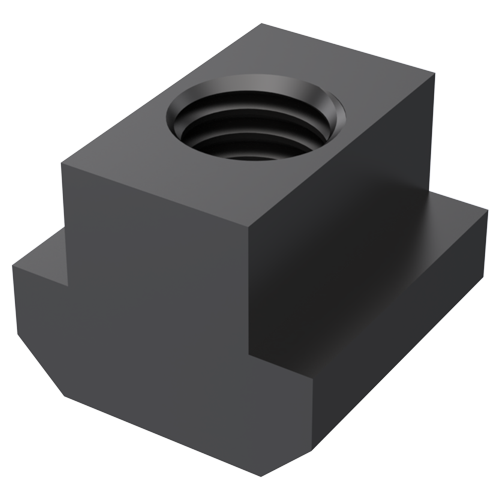

Nuts for T-slots are standardized fastening elements designed to fit into T-slots in machine tables, clamping fixtures, or profile rail systems. They create a form-fitting connection with bolts and can be freely positioned along the slot.
Typical Applications
Nuts for T-slots are used wherever components need to be securely and precisely fixed:
- Mechanical engineering (milling machines, machining centers)
- Fixture and tool making
- Assembly and clamping technology
- Profile and rail systems
- Testing and measurement equipment
Technical Features and Design
- Standard: DIN 508
- Material: Steel
- Strength class: 10
- Surface: plain (uncoated)
- Load capacity: high tensile and shear strength
- Application: suitable for high preload forces
The uncoated surface ensures a precise fit within the slot. No coating thickness interferes with positioning or seating accuracy.
Why Strength Class 10?
Steel nuts for T-slots in strength class 10 are designed for high mechanical loads:
- Suitable for high preload forces
- Designed for dynamic loads
- Stable thread performance even with repeated tightening and loosening
- Low risk of deformation under load
Compared to aluminum or lower strength classes, the connection remains reliable even under vibration.
Advantages of DIN 508
DIN 508 defines the dimensions and geometry of nuts for T-slots, ensuring compatibility and process reliability:
- Accurate fit to standardized T-slots
- Even load distribution within the slot
- Protection of slot flanks against damage
- Reliable pairing with suitable bolts
Matching Component: Screws for T-Slots
For a secure connection, nuts for T-slots should be combined with suitable screws:
- Recommended: screws for T-slots according to DIN 787
- Matching strength class 8.8
- Designed for high preload forces
Dimensions and Selection
Correct selection depends on slot width, thread size, and installation conditions.
Key selection criteria
- Slot width: must match the existing T-slot precisely
- Thread size: determines achievable preload force
- Height: affects thread engagement and load capacity
- Length: ensures sufficient bearing surface
- Head height: relevant for space and tool access
Standard Dimensions
| Slot width | Thread size | Height | Length | Head height |
| 5–8 mm | M4–M6 | 6,5–10 mm | 9–13 mm | 3–4 mm |
| 10–14 mm | M8–M12 | 12–18 mm | 15–22 mm | 6–10 mm |
| 16–22 mm | M14–M20 | 20–28 mm | 25–35 mm | 14–18 mm |
| 28 mm | M24 | 36 mm | 44 mm | 18 mm |
Custom dimensions available on request.
FAQ: Nuts for T-Slots
What are nuts for T-slots used for?
Nuts for T-slots provide a form-fitting connection in T-slots and allow flexible positioning of components on machine tables or fixtures.
Which standard applies to nuts for T-slots?
DIN 508 is the most common standard. It defines dimensions, geometry, and compatibility with standardized slots and screws.
Which screws are compatible with nuts for T-slots?
Typically DIN 787 screws for T-slots. Depending on the application, suitable socket head screws or stud bolts may also be used.
How do I choose the correct size?
The key factors are slot width and thread size. Both must match the slot and the selected screw.
Why is strength class important?
It determines the allowable preload forces. Strength class 10 is suitable for demanding applications.
Can nuts for T-slots be reused?
Yes. If properly designed and undamaged, they are suitable for repeated tightening and loosening.
What role does the surface finish play?
A plain (uncoated) surface ensures precise fitting without additional coating thickness and improves seating accuracy.
How are nuts for T-slots installed?
They are inserted laterally into the T-slot and can be freely positioned along the slot. Once tightened, they form a secure form-fitting counter support that reliably holds clamping and support elements, even under high loads.
