Cage Nuts
002.54.119
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.45*
/
100
PCS
|
from 100 |
Available immediately
002.54.209
Available immediately
| Unit price | Quantity |
|---|---|
|
€10.80*
/
100
PCS
|
from 100 |
Available immediately
002.56.619
Available immediately
Available immediately
002.53.119
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.45*
/
100
PCS
|
from 100 |
Available immediately
002.55.311
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.40*
/
100
PCS
|
from 100 |
Available immediately
002.56.629
Available immediately
| Unit price | Quantity |
|---|---|
|
€32.60*
/
100
PCS
|
from 100 |
Available immediately
002.54.319
Available immediately
| Unit price | Quantity |
|---|---|
|
€15.00*
/
100
PCS
|
from 100 |
Available immediately
002.56.239
Available immediately
| Unit price | Quantity |
|---|---|
|
€10.50*
/
100
PCS
|
from 100 |
Available immediately
002.55.219
Available immediately
| Unit price | Quantity |
|---|---|
|
€9.65*
/
100
PCS
|
from 100 |
Available immediately
002.56.321
Available immediately
| Unit price | Quantity |
|---|---|
|
€10.20*
/
100
PCS
|
from 100 |
Available immediately
002.55.321
Available immediately
| Unit price | Quantity |
|---|---|
|
€11.00*
/
100
PCS
|
from 100 |
Available immediately
002.55.229
Available immediately
| Unit price | Quantity |
|---|---|
|
€16.10*
/
100
PCS
|
from 100 |
Available immediately
002.56.329
Available immediately
| Unit price | Quantity |
|---|---|
|
€14.00*
/
100
PCS
|
from 100 |
Available immediately
002.58.439
Available immediately
| Unit price | Quantity |
|---|---|
|
€35.00*
/
100
PCS
|
from 100 |
Available immediately
002.53.129
Available immediately
| Unit price | Quantity |
|---|---|
|
€8.45*
/
100
PCS
|
from 100 |
Available immediately
002.56.311
Available immediately
| Unit price | Quantity |
|---|---|
|
€13.10*
/
100
PCS
|
from 100 |
Available immediately
002.58.449
Available immediately
| Unit price | Quantity |
|---|---|
|
€33.60*
/
100
PCS
|
from 100 |
Available immediately
002.56.219
Available immediately
| Unit price | Quantity |
|---|---|
|
€10.80*
/
100
PCS
|
from 100 |
Available immediately
002.55.319
Available immediately
| Unit price | Quantity |
|---|---|
|
€24.20*
/
100
PCS
|
from 100 |
Available immediately
002.59.529
Available immediately
| Unit price | Quantity |
|---|---|
|
€64.20*
/
100
PCS
|
from 100 |
Available immediately
002.53.109
Available immediately
| Unit price | Quantity |
|---|---|
|
€16.10*
/
100
PCS
|
from 100 |
Available immediately
002.54.229
Available immediately
| Unit price | Quantity |
|---|---|
|
€23.10*
/
100
PCS
|
from 100 |
Available immediately
002.56.229
Available immediately
| Unit price | Quantity |
|---|---|
|
€12.90*
/
100
PCS
|
from 100 |
Available immediately
002.54.329
Available immediately
| Unit price | Quantity |
|---|---|
|
€50.40*
/
100
PCS
|
from 100 |
Available immediately

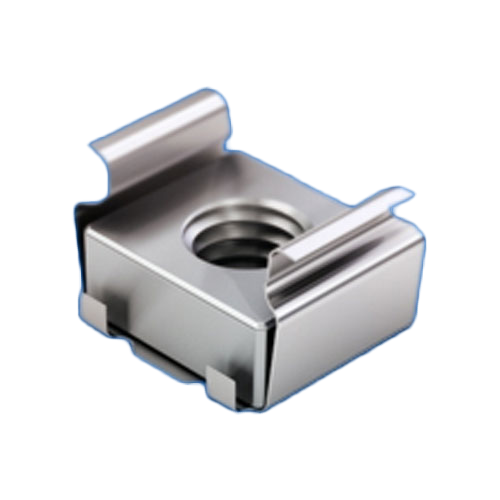

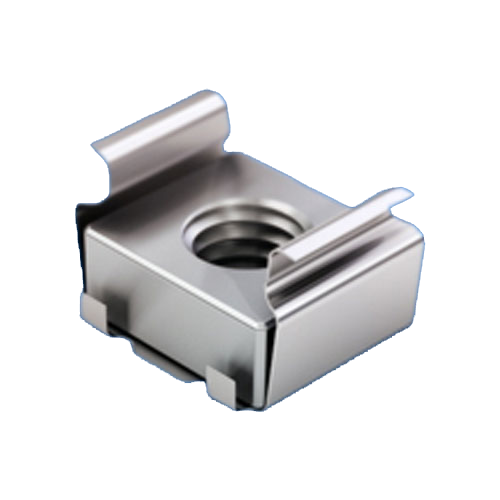

Cage nuts
Cage nuts or box nuts consist of a square cage that can be easily clipped into the drill holes on the workpiece from the outside. Inside, there is a nut thread that can be moved longitudinally and transversely: This means that drill-hole tolerances can be compensated for during efficient assembly. Cage nuts are ideal for integrating screw connections into thin sheet metal panels which do not allow a thread to be cut. Blind assembly is possible with high tightening torques. Box nuts are reusable in combination with matching screws. They can be used in confined spaces and are therefore often found in control cabinets, where they are used to quickly attach units to the rack.
At ETTINGER you can order both normal cage nuts with the frequently used M6 thread as well as designs with grounding – naturally, in the highest quality and in large quantities on request.
Standard square nuts for control cabinets
These quick fasteners are available in three different versions:
- R version:
- Cage: stainless steel 18/8
- Nut: galvanized steel, passivated
- Thread: M3 to M10
- Clamping range: 0.3 mm to 4.7 mm
- Bracket width: 5.3 mm to 14.0 mm
- RR version:
- Cage: stainless steel 18/8
- Nut: stainless steel
- Thread: M6
- Clamping range: 1.2 mm to 1.6 mm
- Bracket width: 8.3 mm
- ZI version:
- Cage: galvanized spring steel, passivated
- Nut: galvanized steel, passivated
- Thread: M5 and M6
- Clamping range: from 0.7 mm to 2.7 mm
- Bracket width: 9.5 mm
Grounded cage nuts to prevent short circuits
When used for wiring and cable runs, the cage nuts should be grounded to protect the equipment from short circuits. For this purpose, the grounded cage nuts from ETTINGER have bent-up corners on the enclosure which engage in the workpiece and form a firm contact with the component when screwed on. The cage is made from stainless steel, the nut from galvanized, passivated steel. The following versions are available:
- Thread: M5 and M6
- Clamping range: from 0.7 mm to 3.5 mm
- Bracket width: 9.5 mm
Place your order for cage nuts, screws with corresponding threads and washers conveniently online at ETTINGER. Upon request, we will also be happy to send you a product sample before you order.
Quality from ETTINGER – your requirements are our mission
For more than 60 years we have been supplying fasteners and electromechanical components in accordance with widely recognized standards. We rely on qualified employees, strict incoming goods inspections and innovative technologies to ensure that we consistently meet our high quality standards for battery and soldering technology as well as other electromechanical accessories.
At ETTINGER, we prefer to manufacture and source our parts in Germany. Thanks to long-standing, reliable business relationships with our suppliers we now have strong partners at our side, which in turn enable us to offer you products of the highest quality.
Quality through service and expertise. When you buy components from ETTINGER, you can enjoy peace of mind and confidence in your project.
