IEC Connectors
039.96.230
Available immediately
| Unit price | Quantity |
|---|---|
|
€1.55*
/
1
STK
|
from 1 |
Available immediately
039.41.160
Available immediately
| Unit price | Quantity |
|---|---|
|
€1.20*
/
1
STK
|
from 1 |
Available immediately
039.73.470
Available immediately
| Unit price | Quantity |
|---|---|
|
€4.60*
/
1
STK
|
from 1 |
Available immediately
039.61.199
Available immediately
| Unit price | Quantity |
|---|---|
|
€1.05*
/
1
STK
|
from 1 |
Available immediately
039.61.807
Available immediately
| Unit price | Quantity |
|---|---|
|
€3.70*
/
1
STK
|
from 1 |
Available immediately
039.73.572
Available immediately
| Unit price | Quantity |
|---|---|
|
€59.50*
/
10
STK
|
from 10 |
Available immediately
039.74.562
Available immediately
| Unit price | Quantity |
|---|---|
|
€7.25*
/
1
STK
|
from 1 |
Available immediately
039.60.360
Available immediately
| Unit price | Quantity |
|---|---|
|
€3.55*
/
1
STK
|
from 1 |
Available immediately
039.60.160
Available immediately
| Unit price | Quantity |
|---|---|
|
€2.55*
/
1
STK
|
from 1 |
Available immediately
039.61.190
Available immediately
| Unit price | Quantity |
|---|---|
|
€3.50*
/
1
STK
|
from 1 |
Available immediately
039.74.560
Available immediately
| Unit price | Quantity |
|---|---|
|
€6.00*
/
1
STK
|
from 1 |
Available immediately
039.73.570
Available immediately
| Unit price | Quantity |
|---|---|
|
€4.30*
/
1
STK
|
from 1 |
Available immediately
039.61.260
Available immediately
| Unit price | Quantity |
|---|---|
|
€3.10*
/
1
STK
|
from 1 |
Available immediately
044.50.312
Available immediately
| Unit price | Quantity |
|---|---|
|
€20.60*
/
1
STK
|
from 1 |
Available immediately
039.60.460
Available immediately
| Unit price | Quantity |
|---|---|
|
€3.55*
/
1
STK
|
from 1 |
Available immediately
039.61.523
Available immediately
| Unit price | Quantity |
|---|---|
|
€3.50*
/
1
STK
|
from 1 |
Available immediately
039.73.370
Available immediately
| Unit price | Quantity |
|---|---|
|
€4.90*
/
1
STK
|
from 1 |
Available immediately
039.74.520
Available immediately
| Unit price | Quantity |
|---|---|
|
€3.70*
/
1
STK
|
from 1 |
Available immediately
039.61.160
Available immediately
| Unit price | Quantity |
|---|---|
|
€2.40*
/
1
STK
|
from 1 |
Available immediately
044.50.307
Available immediately
| Unit price | Quantity |
|---|---|
|
€17.80*
/
1
STK
|
from 1 |
Available immediately
044.50.007
Available immediately
| Unit price | Quantity |
|---|---|
|
€20.60*
/
1
STK
|
from 1 |
Available immediately
039.74.540
Available immediately
| Unit price | Quantity |
|---|---|
|
€5.50*
/
1
STK
|
from 1 |
Available immediately
039.61.110
Available immediately
| Unit price | Quantity |
|---|---|
|
€2.85*
/
1
STK
|
from 1 |
Available immediately
044.30.021
Available immediately
| Unit price | Quantity |
|---|---|
|
€16.30*
/
1
STK
|
from 1 |
Available immediately
When supplying power to electrical consumers, the power supply specifications must be exactly right to ensure safe installation and mitigate the risk of damaging these highly sensitive components. The IEC standards (International Electrotechnical Commission) ensure that power supply connectors share consistent characteristics and meet the requirements for the respective power supplies.
ETTINGER supplies the corresponding IEC connectors in numerous designs and as a custom-fit solution for your product – with or without a fuse, as a built-in combination, including a mains filter, and for snap-in or for screw fastening. Rely on our tested quality and put your power supply requirements in the hands of the electromechanical specialists at ETTINGER!
IEC inlets and outlets
Power inlets and outlets for vertical or horizontal screw or plug-in mounting are available in various materials and with customized connections. Our IEC inlets & outlets category includes:
- IEC power inlets in accordance with standard IEC 60320, C14
- For screw mounting
- Polyamide housing
- Connections made of brass, tin-plated
- Pins and clamping screws made of brass, nickel-plated
- For 2.8 mm, 4.8 mm or 6.3 mm connections
- Also available for horizontal mounting for 2.8 mm to 6.3 mm x 0.8 mm connections
- IEC power inlets for PCB mounting
- Earth connection with solder lug or flat plug
- Rear open or closed with protective cap
- IEC power inlets for snap-in mounting
- 2.8 mm or 4.8 mm connections
- Snap-in: 0.8 mm to 3.0 mm
- Max. current: 10 A / 250 V
- IEC power outlets for screw mounting
- For through and rear mounting
- For 2.8 mm, 4.8 mm or 6.3 mm blade terminals
- IEC power outlets for snap-in mounting
- For 6.3 mm blade terminals
- Snap-in mounting from 1.5 mm to 3.0 mm
- Also available with mechanical locking of the contact openings
- Or for PCB assembly

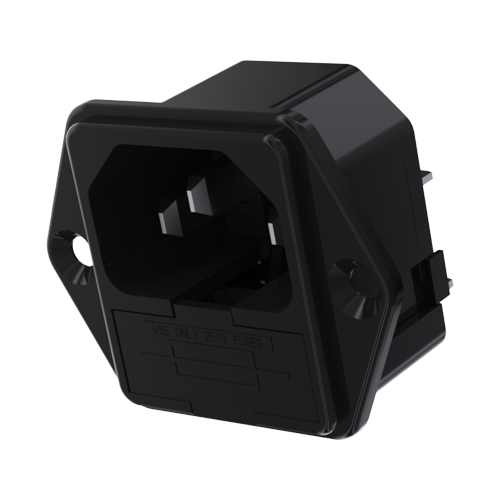

Fused IEC connectors
In our range of fused IEC connectors you will find products with both 1-pole and 2-pole fuse holders for 5 x 20 mm fuses. You can choose between versions for screw or snap-in mounting, each with a polyamide housing and the following specifications:
- IEC power inlets with fuse holder 5 x 20 mm 1-pole or 2-pole, fused, touch-proof
- Pull-out tray for the fuse (5 x 20 mm)
- For 2.8 mm to 6.3 mm x 0.8 mm plug-in connection or print mounting
- Snap-in mounting from 1.0 mm to 3.0 mm or screw mounting
- Fuse holder with solder connection
- Contacts: nickel-plated brass
- Soldering pins: tin-plated brass
- Rated power: 10 A / 250 V~
- Contact resistance: < 15 mΩ
- Insulation resistance: > 104 Ω 500 V
- Test voltage: pole - pole 6 kV~, pole - mounting plate 5 kV~
Mains installation combinations
We also offer numerousmains input modules, from socket strips to mains combination elements. Our range includes the following power entry modules:
- IEC connectors
- In accordance with IEC/EN 60320-1/C14, DIN VDE 0565
- With voltage selectors
- Snap-in mounting from 1.0 mm to 3.0 mm
- Fuse holders with solder connections
- 6.3 x 0.8 mm blade terminals
Mains installation combinations with a 2-pole switch are available with an unlit black or illuminated red or green switch. We also stock IEC connectors with mains filters, inlet/outlet combinations and socket strips.
Please also have a look at the products in our cable plugs and connectors range and order everything you need for your electronics production, from miniature connectors with 2 mm pin diameter to 8-pole sockets. You will also find USB and non-heating IEC connectors in our range.
Quality from ETTINGER – your requirements are our mission
For more than 60 years we have been supplying fasteners and electromechanical components in accordance with widely recognized standards. We rely on qualified employees, strict incoming goods inspections and innovative technologies to ensure that we consistently meet our high quality standards for battery and soldering technology as well as other electromechanical accessories.
At ETTINGER, we prefer to manufacture and source our parts in Germany. Thanks to long-standing, reliable business relationships with our suppliers we now have strong partners at our side, which in turn enable us to offer you products of the highest quality.
Quality through service and expertise. When you buy components from ETTINGER, you can enjoy peace of mind and confidence in your project.
